33.) Lockheed F-104G/S 'Starfighter' ('Widowmaker'- "Özvegycsináló") "Csillagvadász" interceptor fighter (elfogó vadászgép) designer Kelly Johnson, Italian AFB - Istrana: 51th Stormo _ Filmstars; John Travolta 'Qantas'-pilot & Harrison Ford as 'Indiana Jones'

#Lockheed #F-104G/S '#Starfighter' ("#Widowmaker"- "#Özvegycsináló") "#Csillagvadász" #interceptor #jet-fighter - #elfogó#vadászgép. #Skunk-Works' #designer #Kelly Johnson, #Italian #AFB - #Istrana: 51th #Stormo   #Filmstars; John #Travolta '#Qantas'-pilot & #Harrison #Ford as '#Indiana Jones' (#Wikipedia)

18+Refreshed! to-114%- 07.01.2018.-Regulated++++++++++++++

Lockheed F-104 "Starfighter"

above: New! prototype of F-104
A Wikipédiából, a szabad enciklopédiából  www.wikipedia.org
Hu. text: Az F–104 Starfighter egyhajtóműves, szuperszonikus könnyű vadászrepülőgép, melyet a Koreai háború tapasztalatai alapján hoztak létre az Amerikai Egyesült Államokban. Tervezője Kelly Johnson, az egyik leghíresebb amerikai repülőgép-konstruktőr. A repülőgép törzse nagyon hasonlít a vele egy időben tervezett U–2 stratégiai felderítőgépéhez. Sebessége és emelkedőképessége kiváló volt, de számos rossz tulajdonsága, elsősorban kis hatótávolsága és nagy (szárny) felületiterhelése miatt az Amerikai Légierőnél az 1960-as évek végére kivonták az első vonalbeli szolgálatból. Néhány NATO-tagállamban korszerűsített változatai sokáig rendszerben maradtak, Németország légierejében az 1980-as években a Tornado, Hollandiában az F–16 Fighting Falcon, Kanadában ez id őtájt az F/A–18 Hornet váltotta fel. Olaszországban az utolsó gépek 2004-ig maradtak rendszerben. A repülőgépet nagy sebessége és kis szárnyai miatt gyakran hívták Embervezette rakétának, de katasztrofális baleseti statisztikája miatt Özvegycsinálónak is. Főkonstrüktőre; Clearance "Kelly" Johnson volt a méltán egyik leghíresebb e téren.
above: new! F-104G prototype in Luftwaffe
above: new! "Our grandfathers use used to fly these in Vietnam!"
above:NEW Pics! F-104S Italian AF  below: NEW! NoHigher! Top: Belgian AF source: pinterest
above: NEW! NoHigher! Artisty! in front of - szembenézet

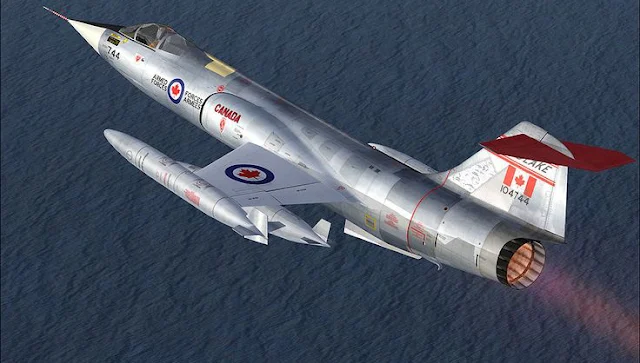

above: NEW! NoHigher! Canadian Air Force CAF CF-104 - 3D artwork
above: NEW! NoHigher! Profile artwork: Canadian Air Force "Tigermeet" & U.S. AF F-104
above: New Pics! HiRes!  Over Arizona from Tucson AFB
 NEW! above: Big! Bayerische LW Greeting card for Me from ret. Col. Gerd Beyer former LW F-104 TFW wing cmdr. after president of WdRBW-OBBG    below: NoHigher! F-104G squadron

above: new! National Aviation & Space Museum: F-104 NASA test flight

above: NEW! HiRes! Hungarian AERO magazin: 2017 február: F-104 Starfighters' rejuvenescence: Again in action at NASA   source: facebook advert of Aero Magazin www.aeromagazin.hu

Italian Air Force F-104I "StarFighter" profile graphics

above: NEW! MedRes! NoHigher! Germany Marine F-104G with Air-Surface Made in Germany antiship missile "Kormoran"

below two: MedRes! profile artworks
above: NEW! HiRes!
above: new! HiRes!
 above & below: NEW! NoHigher! MedRes! Line drawings  http://www.mycity-military.com/
above: HiRes!

above: NEW! MedRes! Lockheed TF-104G   hu.pinterest.com

History: In 1954, the Lockheed Company's famed designer, Kelly Johnson, created a new single-seat fighter design for use in the Korean conflict by the US Air Force. He made it small and relatively light, with a massive, powerful engine -- a combination which would make it very fast and very capable as an interceptor. The first XF-104 prototype was first flown on 7 February 1954, but nearly four years of development took place before the USAF began using the aircraft. During this time the Air Force became disinterested in fighters of the F-104's class, and they purchased less than 300 of them. However, several other allied countries, under the leadership of  West Germany, decided to manufacture an improved version for themselves. Production began in no fewer than six locations, including Belgium, Canada, Italy, Japan, the Netherlands and West Germany. When production ended, 2282 additional F-104s had been built by other nations.
Major production variants included the F-104A (first production version); NF-104A (modified F-104A used for astronaut training; utilized maneuvering thrusters on wings and fuselage for control at high altitudes); F-104C (tactical and nuclear-strike version built for the USAF's Tactical Air Command); F-104G (major production variant built in several countries and utilizing a strengthened structure, more advanced avionics, and various aerodynamic improvements); RF-104G (tactical reconnaissance version); CF-104 (Canadian-built version of the F-104G with removable aerial refueling probe). Aeritalia later developed a multi-role version called the F-104S for the Italian and Turkish air forces.
In 1985, the Italian Air Force began upgrading 150 Starfighters with modern radar, improved self-protection systems and avionics, and up-to-date weapons-delivery capability. These aircraft, designated F-104S-ASAs, are still in front-line service, and are expected to remain flying until the Eurofighter replaces them in approximately 2001. At least three F-104s are now flown by private owners in the USA, and several more are under restoration.
Nicknames: Zipper; "Missile With A Man In It"; Witwenmacher "Widowmaker" (Bundesluftwaffe nickname); Flying Coffin; Ground Nail; Bullet & Blades; Badmash "Wicked One" (Pakistani nickname for F-104As), Eiko "Glory" (Japanese nickname for F-104Js), Spaghetti Starfighter (Italian nickname for F-104S-ASAs.)
Developing Nation:United States
Chief engineer:Clarence “Kelly” Johnson
Task:Multi-role combat aircraft
First Flight:- XF-104: February 7th 1954- F-104A: February 17th 1954 (the 104A had the new and much more powerful J79 engine)- F-104G: October 5th 1960- F-104S: 1966
Crew:- 1- trainers: 2
Wing Span:6,68 m (without tip-tanks or missiles)
Wing Area:18,21 m²
Length:16,69 m
Engine (s):- F-104A: General Electric J79-3 enlarged turbojet with 6713 kg thrust- F-104G: General Electric J79-11A enlarged turbojet with 7167 kg thrust- F-104S:General Electric J79-19 enlarged turbojet with 8119 kg thrust
Weight:- F104A: 5698 kg- F104G: 6387 kg- F104S: 6758 kg
Max.Take off weight:- F104A: 8891 kg- F104G: 13054 kg- F104S: 14061 kg
Max. Speed:(Clean)- High altitude: 2334 km/h- Low altitude: 1464 km/h
Max. Range:- F-104A: 1770 km- F-104G: 3510 km- F-104S: 2920 km
Ejection Seat:- Stanley C-1- Export Starfighters were retro-fitted with Martin Baker zero-zero ejection seats.
Radar:- AN/ASG-14T ranging radar (initial USAF Starfighters)- Auronetics NASARR radar (Internarional fighter-bomber aircraft)- NASARR R21-G radar with moving-target indicator and continuous-wave illuminator for semi-active radar homing missiles. (Italian F-104S)
Weapons:- All types: 20 mm M61A-1 Cannon, and wingtips Sidewinder missiles.- F-104C: can carry: 2x 454 Kg. Bombs- F-104G: can carry 1x 907 Kg. load under the fuselage, and two 454 Kg. bombs under its wings- F-104S: Carries 2x Sparrow or Aspide air to air missiles plus 2 or 4 Sidewinders
Developed by Lockheed as a single engine, high performance super sonic interceptor aircraft.Number Built:
The ‘Starfighter’ served the US air force from 1958 until 1967, the Air National Guard phased out the last F-104 in 1975. Nasa stoped using the F-104 in 1994.
Several European air forces had the F-104 in service mainly the F-104G, they served well into the 1980′s. The final version of the ‘Starfighter’ the F-104S was developed by Lockheed for the Italian air force, designed to carry AIM-7 Sparrow missiles. The Italian’s were the last operators of the Starfighter, their last

above: New pic! Nations of  F-104 operators. The blur graph source: Pinterest
above: New! F-104ASA ItAF   below: NEW! MedRes!
from ret. avn. Col. Gerd Beyer, former LuftWaffe Fighter wing cmdr. with greeting.

above: LeftNEW pic: MedRes! LW F-104G of author Olaf Groehler: 'History of Ar War' - Berlin Military Verlag 1980's - Zrinyi Kiadó translation; "A légiháborúk története" - Right: NEW! MedRes! ITAF Aeritalia F-104S. Gordon-Taylor: "Military Aircraft of the world". 1973 Ian Allan Published - London
above: new! MedRes! size comparison      below: NEW! MedRes!
below: NEW! NoHigher!  vintage cutw.
Large  three Cutaway Drawing !

Cutaway drawing of Starfighter a Sztár-vadász F-104 röntgenrajza

above: NEW! HiRes! Cutaway en interpretacion artistica temprana de un modelo Sukhoi publicada en la revista Popular Mechanics de mayo de 1957, de autor no identificado y retocado por Motocar pa adecuar la imagen. - Russia's answer to the F-104 "Starfighter" - Az Oroszok (SzU) válasza az F-104 "Csillagvadász"-ra   source: http://www.zona-militar.com/foros/threads/cutaways-cortes-esquem%C3%A1ticos-de-aviones.24700/page-181
above: NEW! HiRes!

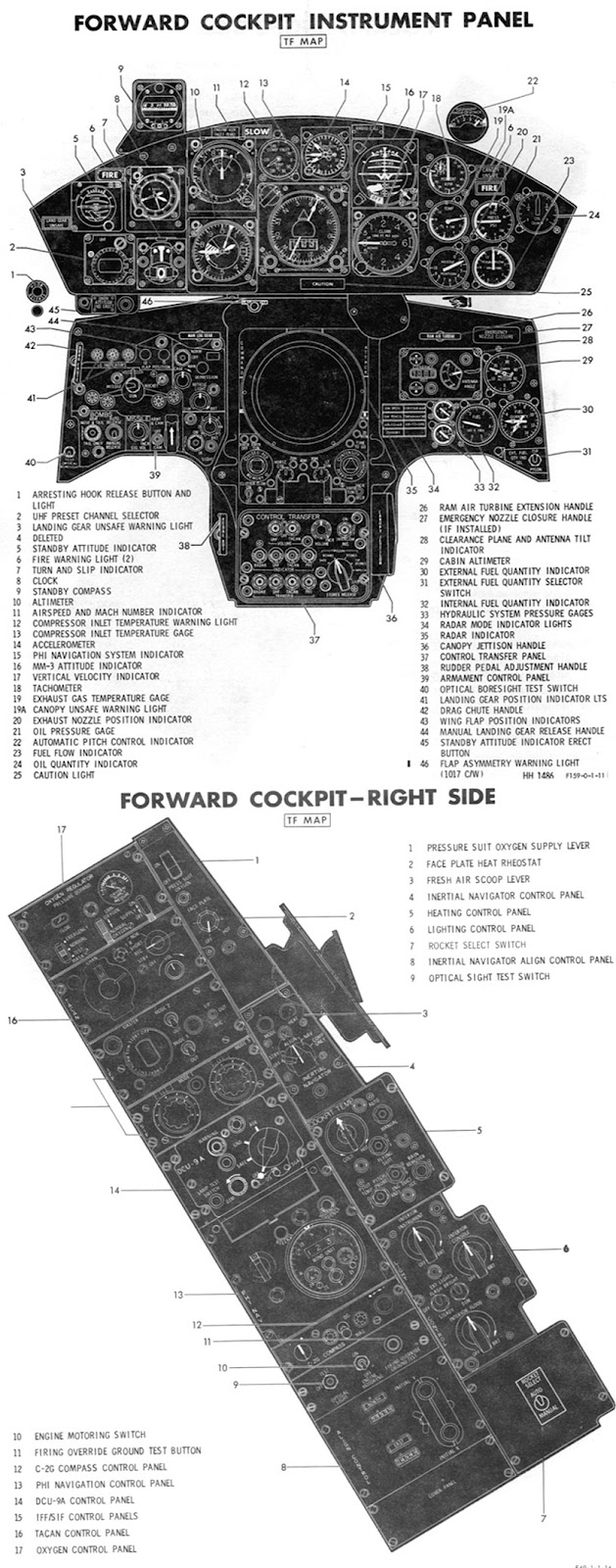

above & below Two: NEW+! NoHigher! Cockpit drawings

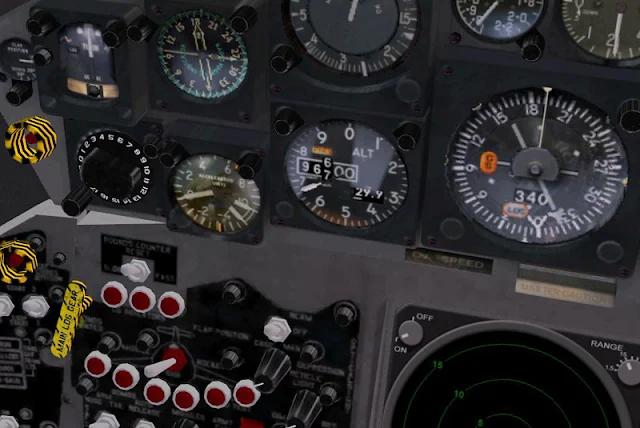

aboveNEWNoHigher! Instrument panel of Avsim
NEW! above & below Two: MedRes! Instrument panel of Avsim

 NEW! NoHigher! Ejection seat and trainer cockpit and canopy
above: NEW+! Juci'bacsi's scan & edit collect mfrom late 1980's: Italian ESCI Catalogue 1989.: F-104 cockpit scale 1:12 (zoomed) also Courtesy FREE!
Kedvelvevő ábra ! Unmotivation Drawing ! F-104's Systems' Sheets   below: new! MedRes!
above & below: Take Off & Landing procedures
above: Juci'bacsi's scanned repro photopaper collection from Soldat und Technik early 1980 FRG review: New pic! MedRes! Marine F-104G german 'Kormoran' antiship A-S missile method.
above: NEW! MedRes! F-104 Flight Envelope

above: NEW! MedRes! F-104G from 1960 in museum
above: NEW! HiRes! Lockheed - MBB F-104G "Starfighter" Luftwaffe

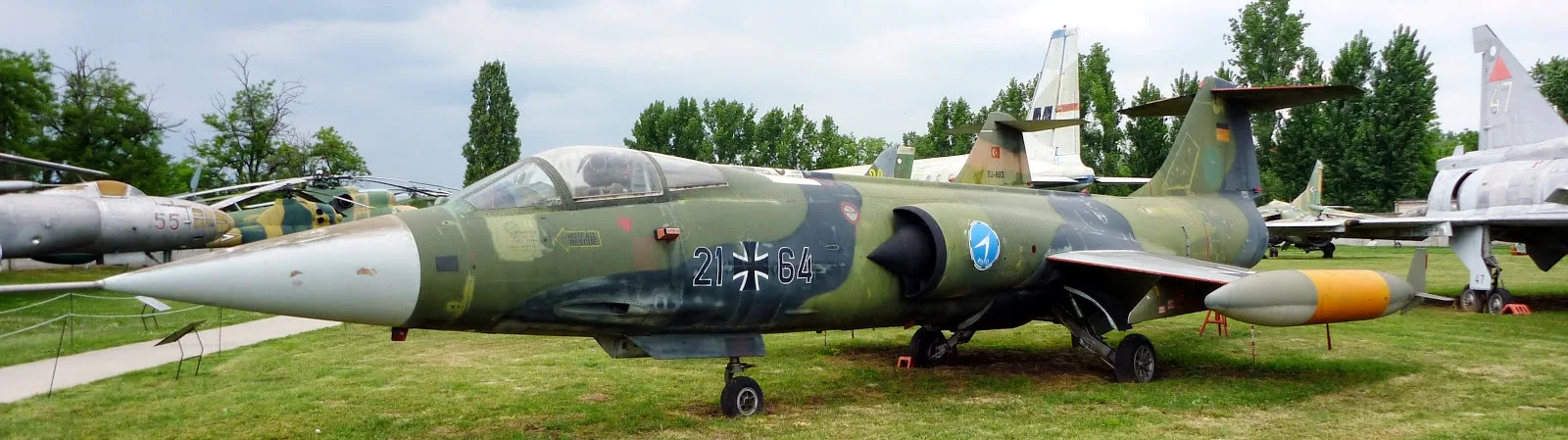

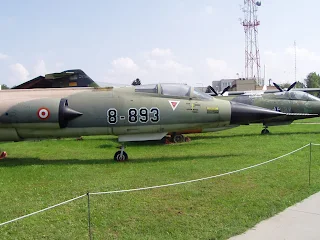

above: Juci'bacsi's HiRes! photos: F-104G (Made in Germany) at Szolnok Military Aviation Museum

above & below: HiRes! Juci'bacsi's photo: Türkish Air Force - Türk Hava Kuvvetleri F-104

above: NEW! MedRes! M61 20 mm "Vulcan" 'Gatling' rotate barrel system - GFR Marine F-104G Waffenschacht

above four: New Pics! Juci'bacsi's photo HiRes! Szolnok Aviation Museum. Bottom: Turk F-104
above: NEW! NoHigher! Szolnok Aviation Museum. Bottom: same Turkish F-104
above: NEW! HiRes! at LHSN Aviation Museum: Tradition Keeper mechanic (former MiG-21 enlisted mechanic) Leslie Csillag Laci'bácsi who is "Lessie" dog fan & owner (Skótjuhász-kutya) & the Hu, represantative the germany OKS GmbH.: The OKS brand stands for high-performance products for reducing friction, wear and corrosion. Our tribological know-how ensures that your machines and systems operate efficiently even under the most demanding circumstances – at all times.
above & belowNEW pic: Juci'bacsi's dia/slide scanned collection: Lockheed F-104G 'Starfighter' in Luftwaffe. source: Soldat und Technik or Wehrtechnik 1970's

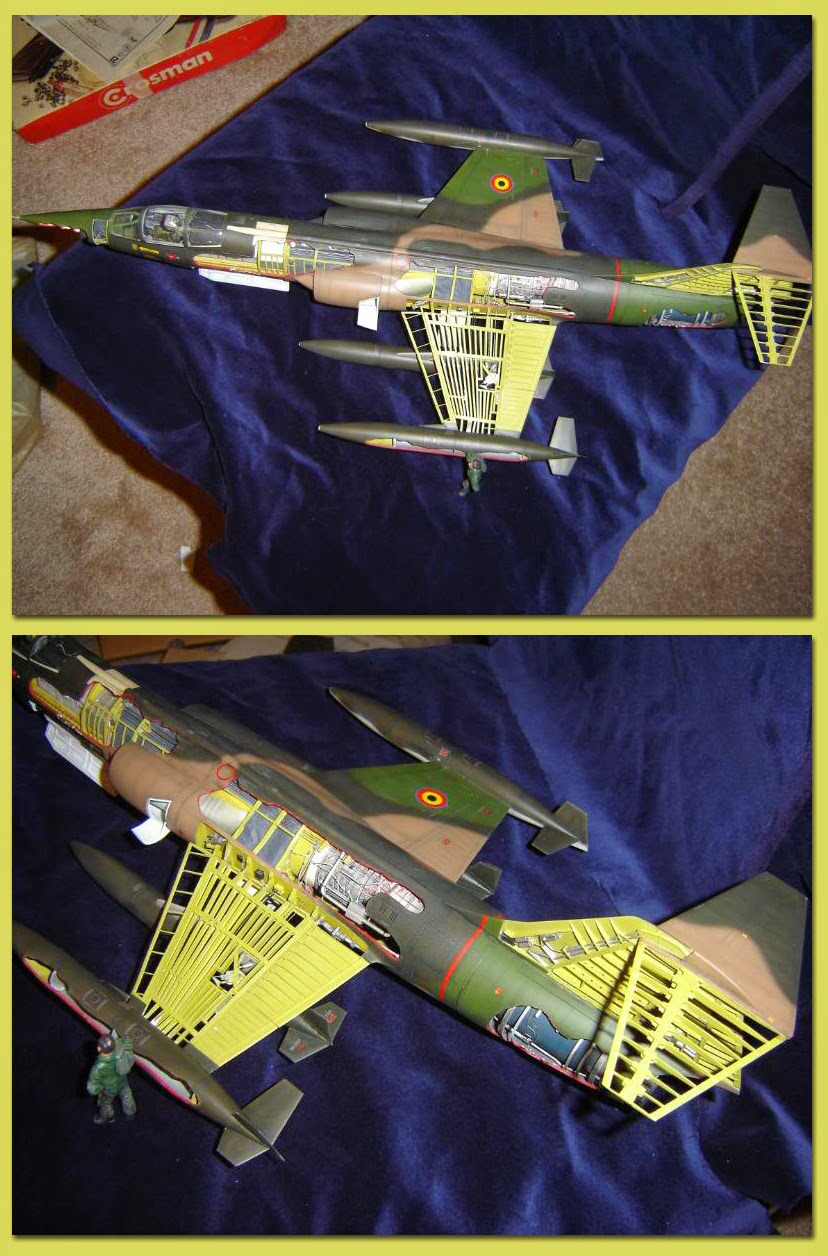

above: MedRes! Cutaway model      below: NoHigher! Luftwaffe's model
 above & below Two: NEW+HiRes! Juci'bacsi's scan &edit collect from early 1980's  Japanese 'Hasegawa' 1977 Catalogue : scale 1:32 Luftwaffe & JASDF F-104s  also Courtesy FREE!
The Hasegawa Corporation (株式会社ハセガワ Kabushiki Gaisha Hasegawa) is a company that manufactures plastic model kits of a variety of vehicles, including model aircraft, model cars, model ships, model armor, model space craft and science fiction kits. Based in Shizuoka, Japan, Hasegawa competes against its neighbor, Tamiya, though it does not have as large a line of products.  ...
above: NEW+! NoHigher! Hasegawa catalogue - katalógus 1977.  also FREE!
above: NEW+! NoHigher! Starmodels. Right: Eva Herzigová czech model
Cz. text: Eva Herzigová (10. března 1973 Litvínov) je česká supermodelka a herečka. Svou kariéru modelky začala v roce 1989, kdy zvítězila v pražském konkurzu agentury Metropolitan Models a odjela do Paříže. V roce 1994 se prosadila ve světě módy a díky reklamě na podprsenky je nazývána Miss Wonderbra a novináři označována jako „Marilyn Monroe Východu“.
above: NEW! NoHigher! XF-104 and early production F-104 Starfighters ejected the pilot downward to avoid the tall single vertical tail of the aircraft.   below: NEW! NoHigher!
above Two: NoHigher! Artisty furniture
above right: F-104 ejection seat design furniture NEW pic!
aboveNEW pic: MedRes! Juci'bacsi's dia/slide scanned collection: ESCI (It.)  M=1:12 cockpit assembly maquette.
F-104 "Starfighter" Freewheel thin toy with nose absorber springer needle

above: NEW! MedRes! German Design 'Ingersoll' GMT Automatic

18+above: NEW! MedRes! The brake umbrella-parashutist Pin-Up Girl Ditta Von Teese in vintage corset

above & belowNEWHiRes! Juci'bacsi's scan collect: Attached Advert of Revell kits
above: NEW! MedRes! Pakistan Air Force F-104 against IndAF
 NEW! above: HiRes!   below: MedRes!  "Starfighters"

above: NEW! HiRes! 'Grupo Midas' the true Caccia - Cat   http://www.grupomidas.com/

 Logo of "Caccia" 51st Stormo (TFW)
Our true 51 cm Caccia "Cilóka" tomcat
left: Cilóka with green locust (zöld sáska) his bag
above: NEW+! NoHigher! Italian star caccia, Sophia Loren in Venezia

above: Leftnew! HiRes! Map of Italien 1905.   Right: NEW! MedRes!  Region of Italy

above: NEW! MedRes! Adria - Istria - Venezia

aboveNEW! HiRes! USAF Scale 1:1.000.000 Operation Navigation Chart: Treviso - Istrana

below Left: HiRes! Italian Air Force Base Istrana close to Treviso & Venezia. Right: MedRes!
above: MedRes! Relief tourist map
above: NEW! HiRes! AFB Istrana TACAN approach charts

Istrana ItAFB 51st Stormo "Caccia"google earth

aboveNEWHiRes! organization diagram of Italian Air Force   source: wikipedia
Istrana AFB's Star sculpture

above: new! Hires!
above: NEW pic: LuftWaffe F-104, F-4 'Phantom'
above: NEW! MedRes! Profile artwork
accomodation of C.S.B.M team - Hotel Carlton Treviso - Italy
Biztonságpolitika: http://sportszelet.blogger.hu/
Az Európai Bizalom -és Biztonságerősítő Intézkedésekről (CSBM) és Leszerelésről szóló Konferenciát 99 Stockholmban hívták össze, és közel három évig - 1984. január 17 .......

Below: Juci'bacsi's scanned photos about C.S.B.M. (VIENNA DOCUMENT -
belowcommander of the 51st Stormo Col. Giuseppe CORNACCHIA
above: the inspection team. “commander of the 51st Stormo Col. Giuseppe CORNACCHIA - in My opinion; who was similar the best famous Italian actor Marcello Mastroianni.
above: Juci'bacsi scanned photos: The CSBM team with my travelling companion flt. capt. (An-24/26 pilot) Trombitás "Trombi" Feri and commander of 51st Stormo flt. col. Giuseppe Cornacchia
F-104S "Starfighter" Italian Lisensing made
AMX at Istrana
Italian & Brasilian co-production LA AMX   below: NEW! MedRes! ITAF AMX

above: NEW! HiRes! Cutaway Italian & Brasilian co-operation product. Aeritalia-Embraer AMX Low-Cost LA Light Attack airplane.   below: NEW! Brasilian beauty fitness - AMX-power

above: NEW+! NoHigher! Starfighter, John Travolta intercepts to Scarlett Johansson on Oscar-gala 2015 Academy Awards

John Travolta youth aviation school founder with US govermental support

 NEW+! above: NoHigher! Travolta's birtok /Jumbolair   below: Left: MedRes! He as Qantas' ambassador in Boeing 707   Right: MedRes! He is During examiation in  USAF B-707 simulator  source: Wikipedia

John #Travolta And #Breitling Pursue Their Shared #Flight (Full HD)

John Travolta Experiences the New Challenger 350 Aircraft

John Travolta, Challenger ambassador, experiences the Challenger 350 aircraft and flies on one of its test flights at Bombardier's facilities in Dallas, Tx and Wichita, KS. John Travolta, ambassadeur de la marque Challenger, fait l'expérience du biréacteur Challenger 350 et vole à bord de l'un des avions d'essai aux installations de Bombardier à Dallas (Texas) et à Wichita (Kansas).

above: New! Harrison Ford in 'Blue Angels' FA-18 "Hornet" cockpit.

Harrison Ford "Indiana Jones" & captain Han Solo Star-Wars 'Millenium Falcon' pilot  in Bell-206 "Jet Ranger". In Memoriam "princess Leia" actress Carrie Fisher R.I.P.

above: NEW Pic! HiRes!: Juci"bacsi's scanned collection:
Híres Sztárok és híres kiváló repülőemberek. JT-nak rep. alapítványa van fiatal repülő-tehetségek részére. Ugyan is ha nincs repülőember utánpótlás az USA-ban leáll a gazdaság is.
above Two & below: NEW+! HiRes! Miss Angela Amici model with Canadair CF-104D Mk. 2 Starfighter CAF 104645.   Photoartist: Michelle Chen Photography: https://www.facebook.com/Michelle-Chen-Photography-239726559422169/  source: Google G+ Hu. Collector: Mr. Bányiczki Zoltán Pin-Up Expert
above: NEW! HiRes! CF-104D of 439 Squadron of Canadian Armed Forces at the 1978 Mildenhall Air Fete  source: Google G+ Hu. Collector: Mr. Bányiczki Zoltán Pin-Up Expert

aboveNEWHiRes! Miss Alexis Scigliano model with Canadair CF-104D Starfighter

above Four: NEW+! HiRes! CAF F-104C with: Miss Alexis Scigliano model with Canadair CF-104C Starfighter (c/n 5315) 104645 “645.”  photo: MAU: Leah Bandong  Model: Alexis Scigliano   www.creativescans.com   source: Google G+ Hu. Collector: Mr. Bányiczki Zoltán Pin-Up Expert
above: NEW! NoHigher! True Negro Caccia  source: Pinterest.com

above: NEW+! HiRes! Japanese style 'Hentai'/'Manga' drawing about Luftwaffe's Widowmaker officer
