Aн-8 Антонов - Antonov An-8 "Camp" Soviet Military Cargo Aircraft. Old Cutaway / Cross Section Drawing. An-10 "Ukrajna -Украйна" turboprop airliner. ЧЕРТЕЖИ И СХЕМЫ. Juci'bácsi's feljavító preparation artwork
Refreshed to!-108%-20.03.2021-Regulated+++++:+:+:+
above: NEW! HiRes! Antonov An-8 "Camp" Digital art source: Wallpaper Memory

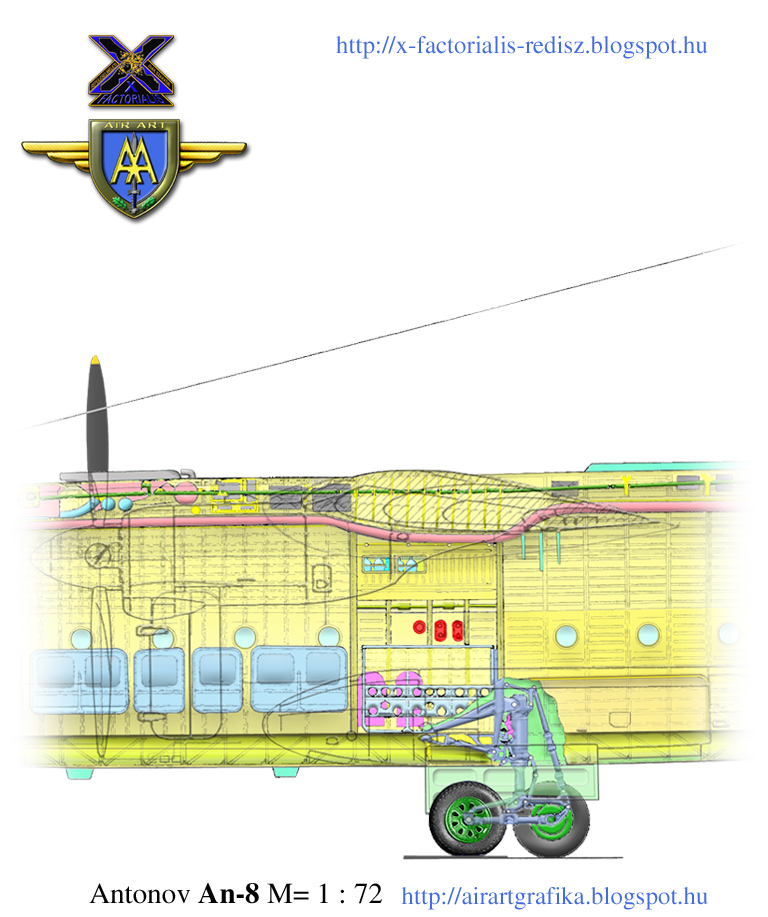

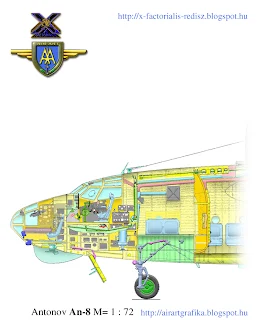

Reconstructed and Colour Developed Cross Section
Sheet HiRes! Drawing
Reconstructed Cross Section Skeletonial Drawing
by;
Below; a lot of 4 parts of Original Cross Section BIG Drawings from Russian Modeller's Site
Attention ! Sorry ! The Downloaded Drawing will not Scale due Blog pict. size limitation !
Below; a lot of 4 parts of Original Cross Section BIG Drawings from Russian Modeller's Site
Attention ! Sorry ! The Downloaded Drawing will not Scale due Blog pict. size limitation !
Details :
above Two: NEW! HiRes! Original downloaded detail pages of drawing

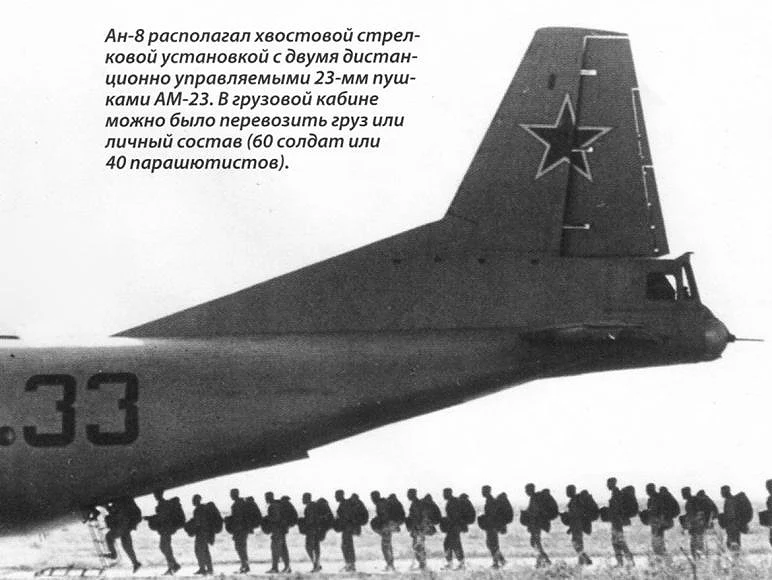

NEW! NoHigher! above: Tail section with onboarding Paras below: On air
 |
Very BIG 6 view Draw
above: Viewing thumbnail problem! But after click in zoom very good large & resolution multiview line draw!
|
 |
| Fwd. Pressurized Pilot and Passanger Cabin's door |
 |
| Rear airframe section |
 |
| Details of Ramp door |
 |
| Details of Rear Gunnery Station |
 |
| Middle airframe - loading space section |
NEW! above: HiRes! The side-door - az oldalajtó below: MedRes! sideview
above: MedRes! Schema of retracable nose wheel
 |
| Schema of retracabla main wheel of under carriage |
above: NEW Pics: An-8 A-Modell below: NEW! NoHigher! Cross profiles from balsa wood
Vasil Zolotov
famous Russian acf.s' profile Artist's artwork http://basilzolotov.com/
The AN-8 (NATO code-named
"Camp") is the twin-engined forerunner of the AN-10 and of the better known
AN-12 ("Cub"). It remained elusive to the western world for a long time. It was
designed for the armed forces as a rear-loading tactical transport and as an
Aeroflot requirement for a 42-48 seat passenger/freighter.. The AN-8 first flew
during late 1955 and there were probably some 100-200 examples produced. All the
Aeroflot examples were ex military. It was long thought that the AN-8 had
retired long ago, but a few crept out of the dark regions of the former Soviet
empire.
NEW! above: NoHigher! Three view profile artwork
above: NEW! MedRes! 3D Avsym below: MedRes! 'Amodel' decal - matrica
above: NEW! MedRes! Russian An-8 modellers
 |
| above: NoHigher! Oleg Antonov have been inspecting the An-8's model aircraft |
An-8
Military Transport Aircraft
The
Antonov An-8 is a twin-engined military transport aircraft by the Soviet
design bureau OKB Antonov (today Antonov ASTC, Ukraine).
| Crew | 6 | |
| Propulsion | 2 Turboprop Engines | |
| Engine Model | Iwtschenko / Ivchenko / ZMKB Progress AI-20D | |
| Engine Power (each) | 3082 kW | 4133 shp |
| Speed | 520 km/h | 281 kts 323 mph |
| Service Ceiling | 9.600 m | 31.496 ft |
| Range | 3.900 km | 2.106 NM 2.424 mi. |
| Empty Weight | 24.400 kg | 53.793 lbs |
| max. Takeoff Weight | 43.400 kg | 95.680 lbs |
| Wing Span | 37,00 m | 121,4 ft |
| Wing Area | 117,2 m² | 1262 ft² |
| Length | 30,70 m | 100,7 ft |
| Height | 9,70 m | 31,8 ft |
| First Flight | 11.02.1956 | |
| Production Status | out of production | |
| Production Range | 1957-1961 | |
| Total Production | 151 | |
| ICAO Code | AN8 | |
| NATO Code | Camp | |
| Data for (Version) | Antonov / Antonow An-8 | |
Тип
|
лекотов арентранспортен
самолет
|
Конструктор
| |
Производител
| |
Произведен
|
1956-2004
|
Произведени
бройки
|
151
|
Първи
полет
| |
Използван от
| |
В експлоатация
до
|
2004
|
Състояние
|
изведен от
експлоатация
|
Лав Характеристики [редактиране]
- Капацитет — 48 души
- Дължина —
- Разпереност —
- Полезен товар —
- Двигатели — 2×Прогрес
АИ-20Д (3 863 kW всеки)
- Максимална скорост —

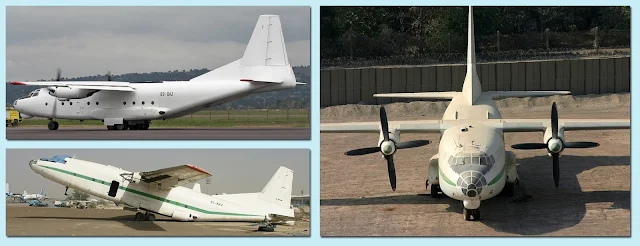

above: NoHigher! 3x Mix below: MedRes! 10
below: MedRes! Mix Three
Тактико-технические характеристики
Ан-8
Экипаж, чел 5-6
Размах
крыльев, м 37,0 Длина самолёта, м 30,744
Высота, м 10,045 Площадь крыла, кв.м
117,2
Размеры грузовой кабины,
м
длина
11,0 ширина (в зоне ниш шасси) 3,6 (2,5) высота (в районе центроплана) 2,9
(2,42)
Тип
двигателя 2 x АИ-20Д Тяга двигателя (э.л.с.) 2 x 5180
Масса
пустого, т 24,3 Нормальная взлётная масса, т 38,0
Максимальная взлётная масса, т
41,0
Максимальная полезная нагрузка, т
11,0 (или 40 парашютистов)
Дальность полёта, км с максимальной
нагрузкой 850 перегоночная 4410
Максимальная скорость, км/ч 520
Крейсерская скорость, км/ч 450
Практический потолок, м 9600 Разбег,
м 775 Пробег, м 590
above & below: MedRes! 10
above: MedRes! An-8 Amodel scale 1:72
above: NEW! MedRes! Vintage photo about in Take Off An-10A "Ukraine"
above: NEW Pics! HiRes!: Juci'bacsi's scanned
collection from Modellezés magazin 1980's
An-10A "Украйна - Ukrajna" (Ukraine")
 |
| An-12 |
 |
| An-10A HiRes! |
above: NEW Internet Pics! An-10 'Ukraina'

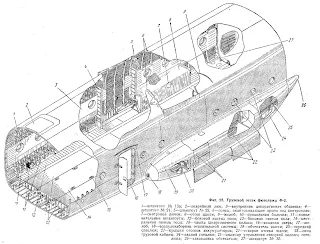

above: NEW! HiRes! Accesories of Cargo compartment - Tehertér felszerelés

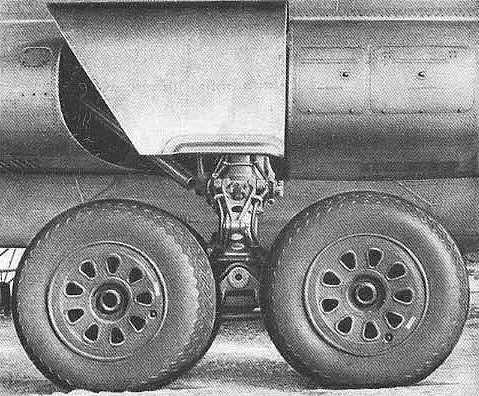

NEW! NoHigher! above: Nosegear - orrfutómű below: Main gear - főfutómű
 |
| Developed An-8 as An-12 |
below: NEWpic: Juci'bacsi's scanned collection: HiRes! An-12 (Good Resolution! No Blur!)
above: New! NoHigher! An-12 original cutaway drawing
above: NEW! NoHigher! Airborne ASU-85 Assault Gun goes from Antonov An-8 - - VDV (Воздушно-десантные войска, - Légideszant Csapatok)
PT-76, BTR-50PU, ASU-85: http://szextant.blogspot.hu/2015/06/159-pt-76-amphibious-light-swimming.html
above: new! MedRes! Polyarnaya Arctic An-12 in Low-Pass over runway below: MedRes! By Juci'bacsi collect from 1973. Free!

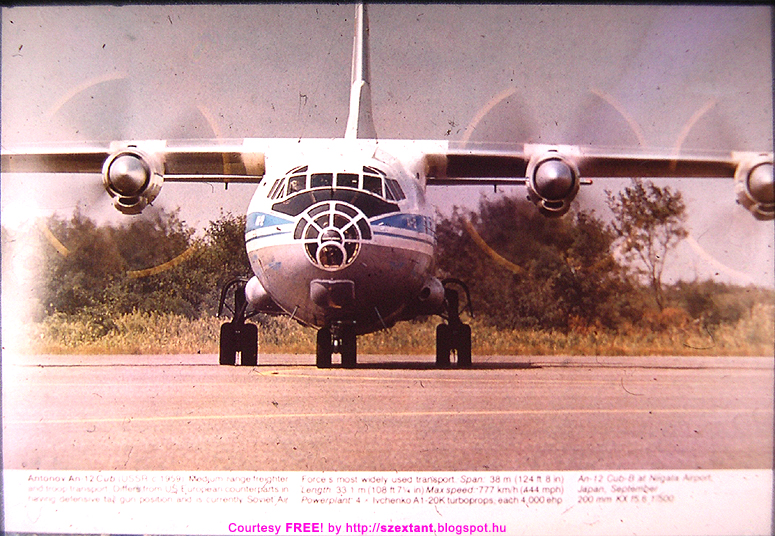

above: NEW+! NoHigher! Juci'bacsi's ORWO Dia/Slide Repro copy DDR VEB PENTACON 'Praktica' FX.2 collect from early1980's: 'Aviation Week & Space Technology'; at Hu. MoD Military Science Library of Institute & Museum of Military History in Budapest in Budaer castle - HM HIM Hadtörténeti Intézet és Múzeum Hadtudományi Könyvtár, (Dr. Nádor Ferenc ezds. könyvtárvezető OI.M.) I. ker. Kapisztrán-tér - square 2-4. Soviet Aeroflot An-12 also Courtesy FREE!
above: NEW! Glazed retro car: Right: MedRes! Left: MedRes! VW Volkswagen T10 Microbus/Van "Camper"
below: new! HiRes! Antonov type profile poster
above: NEW! NoHigher! white An-8
